image to jump to available finish SPECS:
· Applications - For offices, schools, hospitals,
apartments, hotel or motel and other public buildings.
· Lock or latchset - must be Access Hardware Products
model # ML Series. All
locksets/latchsets shall be non-handed, provided with a 3 hour
listed latch and two keys per lock.
· Door Range Thickness - 1-3/8" to 1-3/4" thickness
doors.
· Backset - 2-3/4" Standard, 2-3/8"
optional.
· Front - 2-1/4" x 1 1/8", adjustable
for flat or beveled doors 1/8" in 2".
· Strike - ASA strike standard, "T" and
full lip strike available on request.
· Latchbolt - 1/2" Throw solid brass,
reversible for LH or RH applications.
· Fire Rating: UL listed.
· Latch and Stick Screws - 8-32 X 1" FPH dual purpose.
· ANSI Standards - Conforms to exceeds requirements of
BHMA/ANSI A156.2, Series 4000 Grade 2 (FF-H 106C), 400,000
cycles.
· Exposed Trim - Wrought brass, bronze or stainless
steel, levers are Zinc casting, plated to match trim.
· Keying - 6-pin "C" keyway cylinder,
2 keys per lock.
· Cylinders & Keyways
- 6 pin solid brass "C" keyway
standard.
· Warranty - Five (5) year limited.
· Each package
Includes:

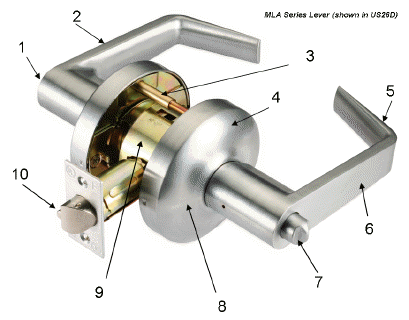

o ML Series
leverset.
o UL listed 2 3/4", 2 1/4" x 1
1/8" faceplate.
o Standard "C", 6 pin cylinder
(factory installed).
o ASA Strike (4 7/8”).
o Necessary screws for installation.
o The
template for installing the lock (the door preps).

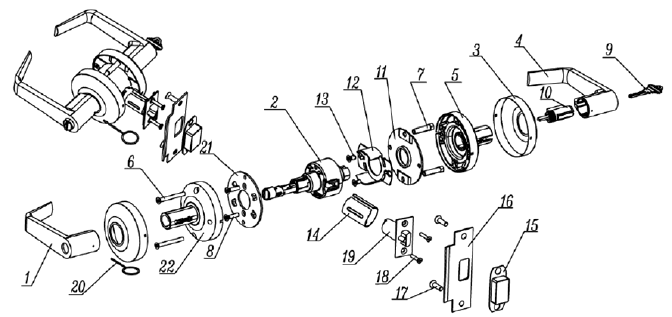

o The lock installation instructions w/
exploded view.
|
