ML SERIES LEVER LOCK
FEATURES:
Click here for ML
Series Specification page
Click
here to jump to Products main page
|
MLA
shown in US26D (satin chrome) |
MLP
shown in US3 (polished brass) |
|
| AHP's newly designed ML
series lever lock is paving the way for a new standard in
heavy duty grade 2 lever locks. The new ML series lock was
engineered with six major aspects in-mind: |
-
Provide
outstanding performance: ANSI
Standards - Meets or exceeds requirements of BHMA/ANSI
A156.2 Series 4000, grade 2 (FF-H 106C), 400,000 cycles.
|
|
|
|
The new ML locks are
designed for commercial, institutional and industrial use in
facilities such as schools, hospitals, factories and office
buildings where a long life of dependable operation must be
combined with a high degree of resistance to physical abuse. A
full range of functions is available to meet all application
needs.
|
|
ML SERIES FEATURES
|
|
-
Cylindrical body construction.
-
Concealed screw mounting; push in and
turn button function.
-
2 3/4” Backset standard; Optional
removable thru-bolt @ 2 3/4" CTC. See line
drawing below.
-
UL Listed 3 hour rated; ANSI Grade 2,
ADA Compliant
-
Full length lever handle with 3/8"
return.
-
Solid brass 6 pin "C" keyway
cylinder.
-
Non-handed design.
-
Reversible dead latch (1/2" Throw)
for square edge and beveled doors.
-
Individual spring on each side to
prevent lever sag, maintain reliability and reduce maintenance.
-
Coil compression springs provide great
strength and durability.
-
Six (6) architectural finishes.
-
Five (5) Year Limited Warranty.
-

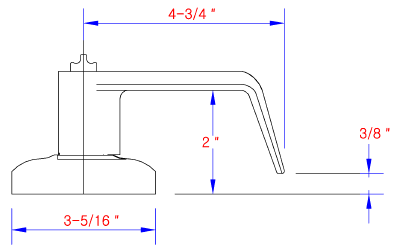

The ML lever features a 3/8" return
and projection of 2-1/2" from the face of door.
See line drawing at below..
|
|
|
|
Optional
removable thru-bolt @ 2 3/4" CTC. |
The ML lever features a 3/8" return
and projection of 2-1/2" from the face of door.
|
 |
|
|
|
ML SERIES FEATURED
PARTS:
|
|
|
|
01.
Solid
brass 6 pin "C"
keyway cylinder..
02.
Outside lever.
03.
Removable
thru-bolt @ 2 3/4” center to center.
04.
Concealed
screw
Mounting.
05.
Inside
lever.
06.
Full
length lever with 3/8” return and projection of 2 1/2”
from the face of the door (both MLA & MLP levers).
07.
Push
in and turn button function.
08.
Individual
spring on each side to prevent lever sag, maintain reliability
and reduce maintenance.
09.
Cylindrical
body Construction & Coil
compression springs provide great strength and durability.
10.
UL
Listed 3 hour rated; Reversible dead latch (1/2" Throw)
for square edge and beveled doors.
|
|
Click here for ML
Series Specification page
Click
here to jump to Products main page
|
|
MODEL |
FUNCTION
ANSI
CODE |
DESCRIPTION |
AVAILABLE FINISH (BHMA) |
FUNCTION
IMAGE |
|
MLA-01
MLP-01 |
Passage
F75
|
Both levers always unlocked.
Latch bolt operated by lever from either side at all
times for immediate egress.
|
605, 613, 625, 626, 606 |
 |
|
MLA-02
MLP-02 |
Privacy
F76
|
Latch bolt operated by lever from either side. Outside
lever is locked by push button inside and unlocked by
emergency release outside. Turning inside lever or closing
door releases push button.
|
605, 613, 625, 626, 606 |
|
|
MLA-05
MLP-05 |
Storeroom
F86
|
Outside lever fixed. Entrance by key only. Inside lever
always unlocked. Inside
lever is always free for immediate egress.
|
605, 613, 625, 626, 606 |
|
|
MLA-07
MLP-07 |
Entrance
F109
|
Turn/Push button locking. Pushing and turning button
locks outside lever requiring use of key until button is
manually unlocked. Pushing button locks outside lever until
unlocked with key or inside knob is turned.
Inside lever is always free for immediate egress.
|
605, 613, 625, 626, 606 |
|
|
MLA-08
MLP-08 |
Classroom
F84
|
Dead locking latch bolt operated by
lever from either side except when outside lever is locked
from outside by key. When outside lever is locked, latch bolt
is operated by turning inside lever.
Inside
lever is always free for immediate egress.
|
605, 613, 625, 626, 606 |
|
|
MLA-155
MLP-155 |
Dummy
|
Single dummy trim for one side of door. Pull only.
|
605, 613, 625, 626, 606 |
|
|
|
|
|
|
|
|
|
|
