DC85 SURFACE DOOR CLOSER FEATURES:

Click here to jump to Products main page



FEATURES:

  • Non Handed.

  • Power Adjustable 1 thru 6.

  • Factory preset to size 3.

  • UL Listed.

  • Barrier Free.

  • ADA Compliant.

  • Factory tested: meet or exceed ANSI 156.4, Grade 1.

  • 180° opening angle.

  • Tri-pack for regular, parallel arm and top jamb installation.

  • Precision cast aluminum alloy housing.

  • Rack and pinion operation contained in a high tensile. precision cast with needle bearing.

  • Non critical thermostatic valves.

  • High quality non gumming and non freezing hydraulic fluid.

  • Separate adjustable sweep and latching speed valves.

  • Adjustable back check control from 70° - 85°.

  • Narrow profile plastic cover included.

  • Finish: US3, US26D & standard aluminum are in stock w/ full metal cover.

  • Optional adjustable delayed action valve.

  • Optional adjustable hold open function.

  • Full molded cover - standard.  Metal cover is optional.

  • Ten year warranty.

  • Fast, easy installation

  • For interior & exterior applications

AHP DC-85 Closer - Satin Chrome

MDC-85 heavy duty door closer shown

in US26D (satin chrome) finish

AHP's DC85 closer is an architectural surface closer that is good for interior and exterior applications and is multi-sized for heavy duty use - meeting Grade 1 standards.  Back-check function & barrier free are  standard along with a full standard molded cover.  Metal covers are optional.

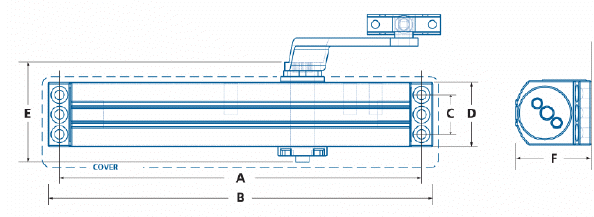

DC85 CLOSER SIZE CHART

A B C D E F COVER
11 1/8" 11 7/8" 1 1/8" 2" 3 3/8" 2 3/8" 12 1/8" x 3"
The DC85 closers are designed for commercial, institutional and industrial use in facilities such as schools, hospitals, factories and office buildings where a long life of dependable operation must be combined with a high degree usage. This closer meets the requirements of most applications.
Click here to jump to Products main page
BHMA CODE US CODE DESCRIPTION
605 US3

Polished Brass

625 US26

Polished Chrome
626 US26

Satin Chrome
689 US28 Aluminum
694 ----- Gold (Medium Bronze)
695 -----

Duranodic (Dark Bronze)
