DC-41 SURFACE
DOOR CLOSER FEATURES:
Click
here to jump to Products main page
|
|
|

|
FEATURES:
-
Universal application; Non-handed
design.
-
Heavy duty ANSI Grade 1
-
Power
Adjustable 1 thru 6
-

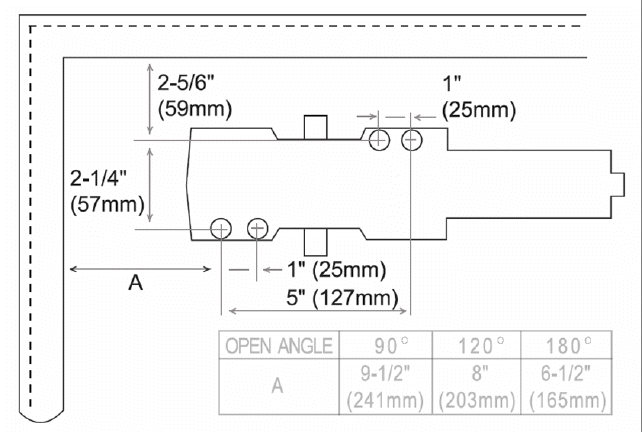

Universal
retrofit hole spacing
-
Factory
preset to size 3
-
Meets
ADA compliance
-
Barrier
Free
-
Conforms
to UL
/ UL10C and UBC 7.2 (1997)
-
UL
listed, ANSI Grade 1, ADA Compliant.
-

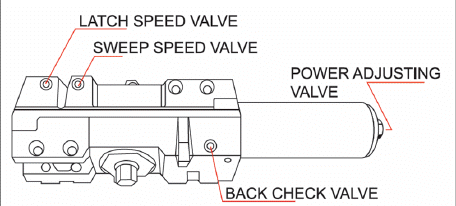

Independent latch speed, sweep speed and
adjustable back-check control from 70°
- 85°.
-
High
quality non-gumming and non-freezing hydraulic fluid
-
180°
opening angle
-
Two
million cycle tested
-
Precision
cast Iron body
-
Rack
and pinion operation contained in a high tensile precision
cast with needle bearing.
-
Non-critical
thermostatic valves.
-
Tri-packed
- can be used for regular arm, parallel arm or top jamb
mounting.
-
Full
molded cover - standard. Metal cover is optional.
-
Fast,
easy installation
-
For
interior & exterior applications
-
Seven
available finishes.
-
689/US28 Standard
finish - in stock.
-
Seven finishes
-
Ten year warranty
|
|
DC41
heavy duty door closer shown
in
US28 (sprayed aluminum) finish
|
|
|
|
| AHP's
DC41 series heavy duty surface door closer is
becoming a fast favorite among door & hardware
installers. With it's modern design,
architectural finish and quick, easy installation,
more and more installers are going to want to
install the DC41 series closer on their
projects and more and end-users are going to request
it! Coupled
with aggressive pricing and a ten year warranty, why
not specify the DC41 series heavy duty closer?
|
|
|
|
DC41 shown in 695 (Duranodic finish)
|
DC41 exposed cast iron body
|
|
|
The new DC-41 closer is designed for commercial, institutional and industrial use in
facilities such as schools, hospitals, factories and office
buildings where a long life of dependable operation must be
combined with a high degree of activity. The DC-41
surface closer meets most application requirements and can be
used on interior and exterior doors. The universal
retrofit hole spacing makes the installation of this closer
fast, easy and a favority among door and hardware installers.
|
|
Click
here to jump to Products main page
|
|
|
|
POWER ADJUSTING CHART
|
|
Closer Power Size
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Clockwise Turns:
|
-6
|
-3
|
Set
|
3
|
7
|
12
|
|
|
|
|
